Welcome to CubeIQ products and systems web pages.
CubeIQ Solutions and Systems: Integrated Solutions
Cheque Processing
System - CPS™
Cheque Processing System - CPS™ is the holistic approach regarding cheque processing in the banking environment.
Starting from a simple cheque code-line reading, moving to cheque image capture and reaching hand writing recognition through advanced Intelligent Character Recognition - ICR and Intelligent Word Recognition - IWR algorithms, the system offers to banks and financial institutions the complete, end-to-end, solution for cheques, remittance, postal bills and any payment document processing.
CPS™ is design to be capable of operating in three levels: (a) at a teller countertop, (b) at a branch back-office and (c) at a regional or central clearing site. In each of the three levels CPS™is designed to perform different specialized functions.
CPS™ consists of a number of Cheque Scanning devices and different software applications based on the iRecognIzer™ platform, specially designed and built for Capturing and Processing of Cheque Data.
CPS™ is processing:
Bank (Manager) cheques
Private cheques
Postal bills
Remittance documents
Payment documents
Coupons
Lottery Tickets
Other documents with OCR or MICR or other type of machine readable text

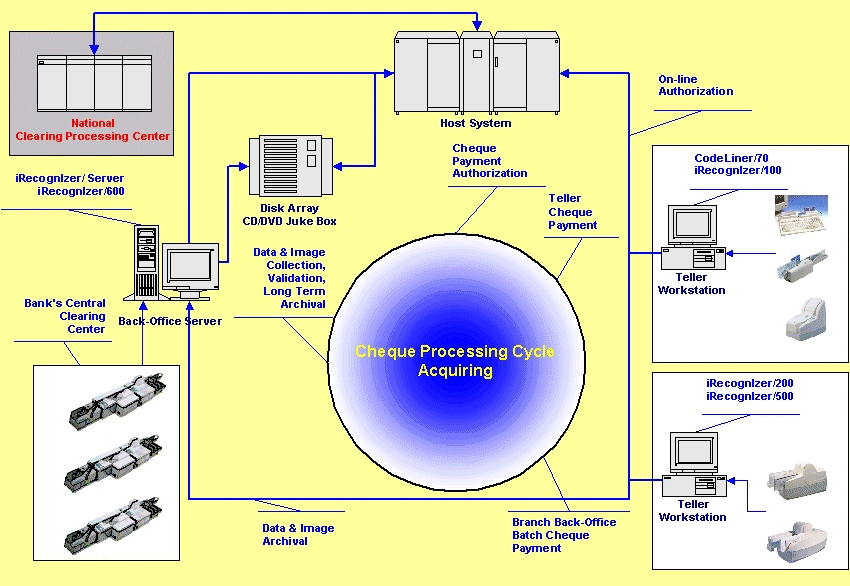

The Holistic Cheque Processing Approach
ImplementationsCPS/Validator™: Cheque Validation System
CPS/rCCS™: Remote Cheque Capture System
CPS/Coupons™: Coupons Processing System
CPS/CCAS™: Cheque Capture & Archival System
CPS/Account™: Cheque Processing System for Accounting Departments
Cheque Register™: Cheque Register System for Accounting Departments
Operationing ConfigurationsCPS™ is available in different operating configurations:
Stand Alone - Single Site
Client / Server - Multiple Sites
Centralized - Single Station
Centralized - Multiple Stations
Distributed Client/Server - Multiple Stations
Technical Specification
- Reading
- Barcode Types:
- 1D: EAN13, EAN8, UPCA, UPCE, CODE39, CODE128, Interleaved 2/5, Codabar, UCC/EAN 128.
- 2D: Code One, PDF417, Data Matrix, QR Code Model 1, QR Code Model 2.
- OCR Types:
- OCRA and OCRB.
- MICR Types:
- CMC7 and E13B.
- Multiple Reading:
- Multiple barcodes of the same or different type on both sides of the document in one pass.
- Multiple barcodes and OCRA or OCRB reading in one pass.
- Multiple barcodes and MICR reading in one pass.
- Maximum reading resolution: 1 character per 4mm.
- Multiple OCR/ICR decoding areas (up to 5) on the document image.
- Sorting
- Automatic document sorting based on barcode or part of the barcode value.
- Discard of unreadable, damaged, illegible or foreign documents.
- Counting
- Automatic document counting without barcode or OCRA/OCRB or MICR reading.
- Image
Capture
- Color, gray scale with 16 or 256 shades of gray or B/W.
- Front and back document images in one pass.
- Up to 4 images - front & back “brutto” (neutral images) and front & back “netto” (red dropout images for OCR/ICR machine and hand print decoding requirements) in one pass.
- Image resolution: from 100 to 200 dpi.
- Options
- Front or rear document stamp (fixed text and logos).
- Rear high definition ink jet printer for variable document endorsing (variable text). Adjustable height: 2 positions.
Features
- At the teller countertop
- Single or multi cheque processing.
- Cheque code line reading.
- Cheque front side image capture (back side as option).
- Cheque data transfer to the front office - branch application.
- Cheque image and data transfer to the central cheque database.
- At the branch back office
- Multi cheque processing.
- Cheque code line reading.
- Cheque front and back side image capture.
- Two (2) or four (4) images per cheque.
- Cheque stamping.
- Cheque endorsement.
- Cheque counting and sorting based on code line data.
- Cheque data and image transfer to a central database in on-line or batch mode.
- Archival and retrieval of cheque image and data to and from a the central database.
- At a regional or central clearing site
- Multi cheque processing.
- Cheque code line reading.
- Cheque front and back side image capture.
- Two (2) or four (4) images per cheque.
- Cheque stamping.
- Cheque endorsement.
- Cheque encoding.
- Cheque counting and sorting based on code line data.
- Cheque data and image transfer to a central database in on-line or batch mode.
- Archival and retrieval of cheque image and data to and from a the central database.
