Welcome to CubeIQ products and systems web pages.CubeIQ Solutions and Systems: Integrated Solutions
Cheque Processing
System - CPS™
Cheque
Validation System - CPS/Validator™
Cheque Validation System - CPS/Validator™ is a system for validating the form, the layout and the code line printing quality of bank and private cheques.
Hellenic Bank Association - HBA and European Central Bank have issued specifications on the form, the layout and the code line printing quality of cheques that are drown in EURO - € currency.
Operations departments of banks that permit qualified customers to print in house their own private cheques using account numbers and cheque numbers given by the bank, can use CPS/Validator™ in order to validate the compliance of these cheques with HBA, ECB and Euro-cheque specifications.
The system can be use also in cases where the bank has outsourced cheque book printing to a printing house. In this case the bank will use the system for sampling check over the printing house production.
The system consists of a document scanner and the accompanied software application.
CPS/Validator™ is validating:
Bank cheques
Private cheques

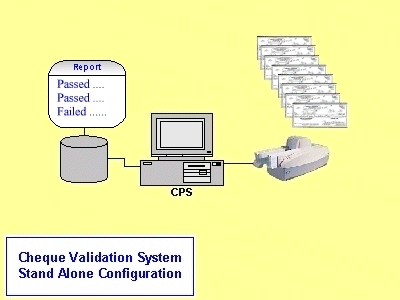

Operating Configurarion Stand Alone - single site
Versions and ReleasesRelease 2.50.00
Release 3.50.00
Checks Overview (R 3.50.xx)
Code line
position
check.
Code line length and
height check.
Device (Scanner)
Status check
Code line quality
check with special checks on each code line field.
34 different checks
on the cheque format.Checks & Results
Cheque Validation System R 2.50.xx
- Checks
- Code line position
Start of the code line at the x,y point according to the standard.
- Code line length and height
Length and height of the code line according to the font and the font points specified by the standard (OCRB, 10cpi).
- Code line reading
Reading - transformation of the code line to electronic text assuming that OCRB font has been used.
- Code line number of characters
Calculation of the number of code line characters and comparison with the min and max number of characters defined in the standard.
- Code line analysis and check digit calculation
Analysis of the code line to the corresponding five fields, recalculation of the check digits according to the standard and comparison of the check digits values with the ones that are included in the code line.
- Results
- Pass
All check results performed are compliant with the standard.
- Fail
At least one check result is not compliant with the standard In this case, the reason of failure appears to the user.
Cheque Validation System R 3.50.xx
- Checks
- Code line position
Start of the code line at the x,y point according to the standard. E
- Code line length and height
Length and height of the code line according to the font and the font points specified by the standard (OCRB, 10cpi). E
- Device (Scanner) Status check
Device hardware configuration and firmware parameters check for OCRB characters recognition operation. E
- Code line quality checks
Recognition from the device of the the existence of a code-line. EIdentification from the device of all characters of the code-line. ECalculation of the number of code line characters and comparison with the min and max number of characters defined in the standard. ECount the number of ">" character in the code-line. ECount the number of "<" character in the code-line. EIdentify the number of fields in the code-line. E
- Format check of each of the five fields in the code-line.
- Fifth field (cheque type) checks
- All fifth field characters have been recognized. E
- The first character of the fifth field is ‘+’. E
- All characters, except the first one, are numeric. W
- The value of the character in position 70 is one of those defined in the standard (1 or 9). E
- Fourth field (IBAN) checks
- All IBAN characters have been recognized. E
- The number of IBAN characters is according to the standard. E
- The first two IBAN characters are letters. E
- The first two IBAN characters are ‘GR’. W
- The issuing branch number is according to the standard (4 numeric characters). E
- The issuing bank number is according to the standard (3 numeric characters). E
- The account number s according to the standard (16 characters). E
- Recalculation of the check digits according to the standard and comparison of the check digits values with the ones that are included in the IBAN. E
- Third field (cheque date) checks
- All third field characters have been recognized. E
- All characters (6 numeric characters) of the third field are numeric and according to the standard. E
- The code-line of a bank or cashier's or manager's cheque has the third filed empty. W
- The code-line of a private cheque has the third field filled. W
- Second field (cheque number) checks
- All characters (9 numeric characters) of the second field are numeric and according to the standard. E
- The cheque number check digit (the ninth character) has been calculated correctly. E
- The opening character of the second field ("+") is missing, misprinted, or spaces cut in between this character and the ending character of the first field. W
- First field (cheque amount) checks
- All characters of the first field are numeric. E
- The code-line of a bank or cashier's or manager's cheque has the first filed empty. W
- The code-line of a private cheque has the first field filled. W
- Results
- Pass: If all results on checks are positive then the cheque is compliant with the standard. If all results on checks defined as Errors are positive and any result on checks defined as Warming is negative then the cheque is compliant with the standard and the corresponding Warning message appears to the user.
- Fail: If at least one result on checks defined as Errors is negative then the cheque is not compliant with the standard. In this case the corresponding Error - reason of failure appears to the user.
Legend:
- E: Generates an Error
- W: Genertes a Warning
Technical Specification
Reading
- OCR Types: OCRA and OCRB.
- MICR Types: CMC7 and E13B.
- Multiple Reading: Maximum reading resolution: 1 character per 4mm. Multiple OCR/ICR decoding areas (up to 5) on the image document.
Image capture
- Color, gray scale with 16 or 256 shades of gray or B/W.
- Image resolution: from 100 to 200 dpi.
- Front and back document images in one pass.
- Up to 4 images - front & back “brutto” (neutral images) and front & back “netto” (red dropout images for OCR/ICR machine and hand print decoding requirements) in one pass.
- Drive of cheque scanners with proprietary device drivers from different manufactures such as CTS, Rototype, Buic and any other upon request.
- Drive of any TWAIN compatible cheque scanner.
Options
- Front or rear document stamp (fixed text and logos).
- Rear high definition ink jet printer for variable document endorsing (variable text). Adjustable height: 2 positions.
Software application
- Management and validation software application from the iRecognIzer™ family. iRecognIzer/Validator™ is included in each Cheque Validation Station.
- HBA, ECB and Euro-cheque code line specifications support. Other code line formats customizable upon request.
